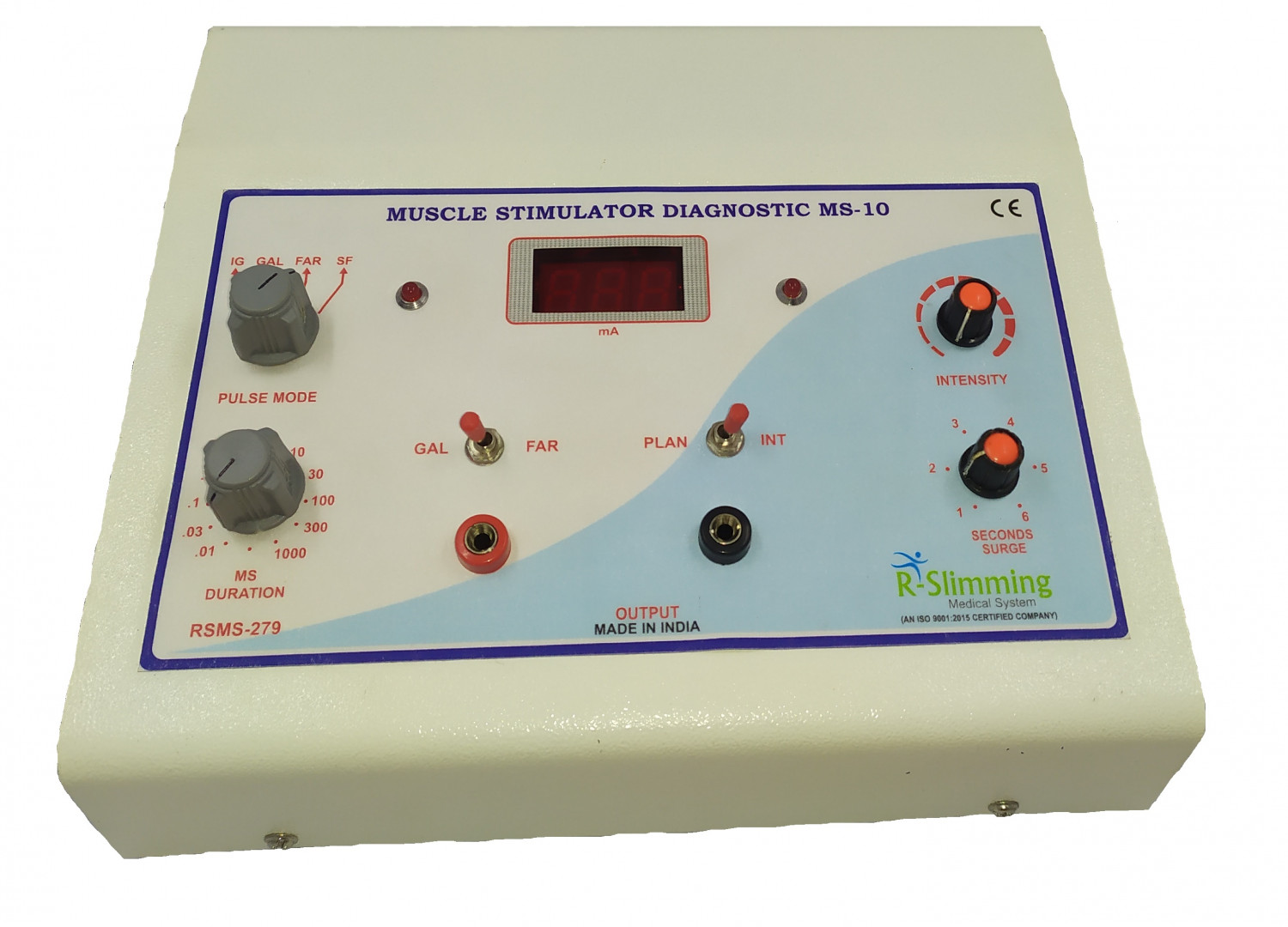

Muscle Stimulator MST
- Model: RSMS-279
- Modes: Galvanic DC, Interrupted Galvanic, Plain Faradic, Surged Faradic
- Pulse Type: Rectangular
- Pulse rate/ Frequency: .01, .03, .1, .3, 1, 3, 10, 30, 100, 300, 1000
- Display: Segment Display
- Surge Duration: 1-6 seconds
- Output current: 0–40 mA
Download Specification
Muscle Stimulator Machine or electrical stimulation uses a relatively low volt- age that targets motor nerves in order to stimulation them. What this does is cause a contraction of the muscle. The muscle then relaxes between shocks and then contracts again when the shock occurs. This constant contracting and relaxing has been used as an effective method to treat various vascular and muscoskeletal conditions. This keeps circulation going and better circulation means oxygen and nutrients can be carried to the muscles much easier.
Interrupted galvanic, faradic & Surge faradic etc. type currents available. Easy to Operate
General Specifications:
GeneraGl Specifications:
-
Model: RSMS-279
-
Made in India
-
Body: Fully metal body
-
Channel: 2
-
Output LED Indicator
-
Timer: 1 to 99Min adj.
-
No. Segment Display: Two
-
Input Voltage: 220-230V 50Hz
-
Intensity: 0-100 adjustment
-
Intensity number shown Display
-
Rotatory Encoder system volume control
-
Interrupted galvanic: (Therapeutic & Diagnostic mode)
-
Frequency: 0.3Hz to 2Hz,
-
Duration: 0.01mS to 1000mS (11 Step)
-
Faradic Frequency: 50Hz to 125Hz,
-
Duration: 0.01mS to 1000mS (11 Step)
-
Surge faradic Frequency: 50Hz to 125Hz
-
Duration: 0.01mS to 1000mS,
-
Frequency Modulation Surge: 1, 2, 3, 4, 5, 6
-
Galvanic: Galvanic continuous, Galvanic Intermittant
-
Treatment Modes: Faradic, Galvanic, Interrupted Galvanic, Surge Feradic
-
Extra Facility: Every Treatment mode can change Pulse & Contineous
-
Display: Segment Display
Technical Specifications:
-
Size:
-
▪ Wide: 10.5"
-
▪ Length: 9"
-
▪ Height: 3.4"
-
Weight: 2.4 kg
-
Operating Voltage: 210-230V AC 50Hz
-
Absorption Watts: 35watts
-
Fuses: 200mA
-
Room Temperature: 10°C to 40°C
-
Moisture: 10% to 80%

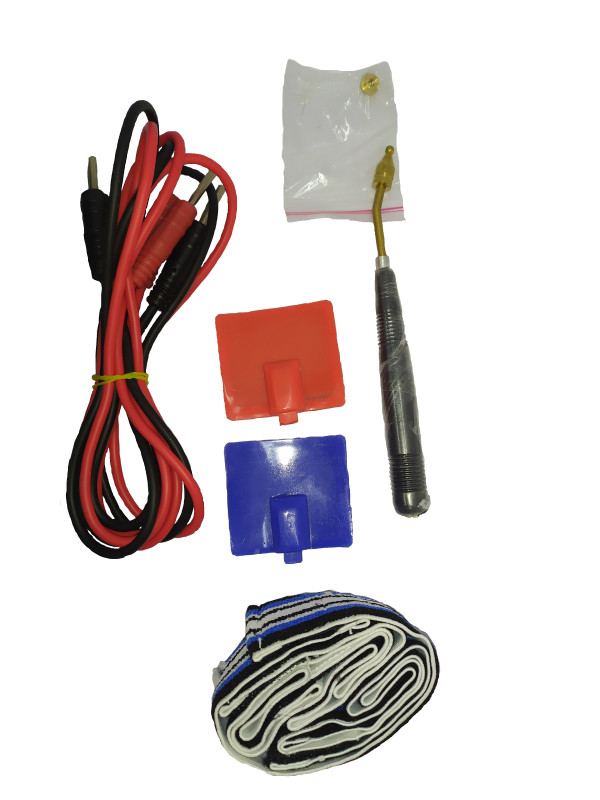

Standard Accessories:
-
Cable 2pcs
-
Pad 2 pcs
-
Strap 2pcs
-
Stimulation pen 1pcs
-
Power Cable 1pcs
GeneraGl Specifications:
-
Model: RSMS-279
-
Made in India
-
Body: Fully metal body
-
Channel: 2
-
Output LED Indicator
-
Timer: 1 to 99Min adj.
-
No. Segment Display: Two
-
Input Voltage: 220-230V 50Hz
-
Intensity: 0-100 adjustment
-
Intensity number shown Display
-
Rotatory Encoder system volume control
-
Interrupted galvanic: (Therapeutic & Diagnostic mode)
-
Frequency: 0.3Hz to 2Hz,
-
Duration: 0.01mS to 1000mS (11 Step)
-
Faradic Frequency: 50Hz to 125Hz,
-
Duration: 0.01mS to 1000mS (11 Step)
-
Surge faradic Frequency: 50Hz to 125Hz
-
Duration: 0.01mS to 1000mS,
-
Frequency Modulation Surge: 1, 2, 3, 4, 5, 6
-
Galvanic: Galvanic continuous, Galvanic Intermittant
-
Treatment Modes: Faradic, Galvanic, Interrupted Galvanic, Surge Feradic
-
Extra Facility: Every Treatment mode can change Pulse & Contineous
-
Display: Segment Display
Technical Specifications:
-
Size:
-
▪ Wide: 10.5"
-
▪ Length: 9"
-
▪ Height: 3.4"
-
-
Weight: 2.4 kg
-
Operating Voltage: 210-230V AC 50Hz
-
Absorption Watts: 35watts
-
Fuses: 200mA
-
Room Temperature: 10°C to 40°C
-
Moisture: 10% to 80%
Standard Accessories:
-
Cable 2pcs
-
Pad 2 pcs
-
Strap 2pcs
-
Stimulation pen 1pcs
-
Power Cable 1pcs
-
-
-
Mr. Customer
02-03-2023excellent
